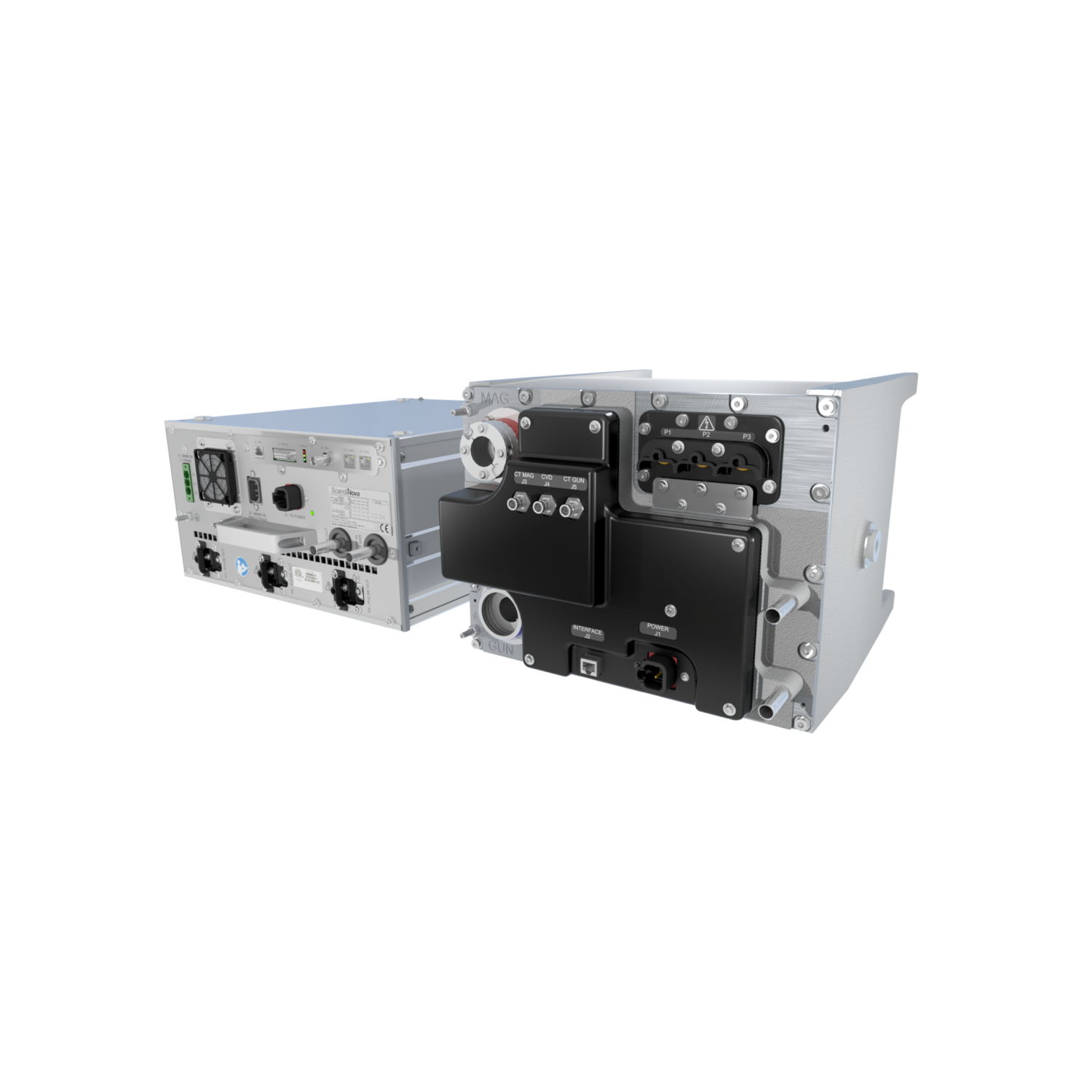

Magnetron Modulator with separated pulse and tank unit. Designed to handle magnetrons in the 1 MW to 3.1 MW range at up to 8 kW average power in a very compact enclosure. M110 is an upgrade of our bestseller M100-i, about 20% lighter and 20% smaller than its predecessor. The M110 also offers improved diagnostics and power factor corrections.
All new ScandiNova pulse modulators and pulse generators are equipped with a user-friendly and modern control system for calibration, diagnostics and adjustments. The system offers a wide range of different shape modifications. Amplitude, pulse width and frequency can easily be changed and visualized on the user friendly GUI. The system also provides an overview of status for key functionality/components, Trig, Interlocks and Real-time event log. With EtherCAT remote control (option) it is also possible to set different voltage levels for each individual pulse.
The control system for the Magnetron modulators (M-series) is operated by a PC interface.
ScandiNova’s M110 is a compact pulse Modulator designed for system integration. The Modulator is optimized for a wide range of different magnetrons with an RF peak power ranging from 1.0 MW to 3.1 MW. To facilitate system integration, the Modulator has a split design with a Tank Unit and a Pulse Unit, and can be placed in a very compact enclosure. The M110 is
equipped with active power factor correction.
The M110 is the perfect choice for radiotherapy, and industrial and users who need to drive lower power magnetrons.
Key features.
Reliable modular design results in a modulator that provides an extremely high level of operator and technician safety due to low primary voltage levels. These low voltages also eliminates most component failures due to reduced thermal and electrical stress.
Lower cost of ownership due to high electrical efficiency, removal of expensive consumables that need regular maintenance and fewer unscheduled stops. The high electrical efficiency allows cooling costs to be approximately half of a line type pulse forming network modulator.
Precise control over the pulse shape and amplitude allows users to configure the modulator to get optimal performance from their transmitter system. Both peak and average power delivery can be adjusted over time to meet changing system requirements.
A wide array of digital data interfaces are supported allowing system parameters to be modified and operating data to be communicated to the customer. This allows for easy system setup, performance monitoring and data archival.
