M-SERIES

M060

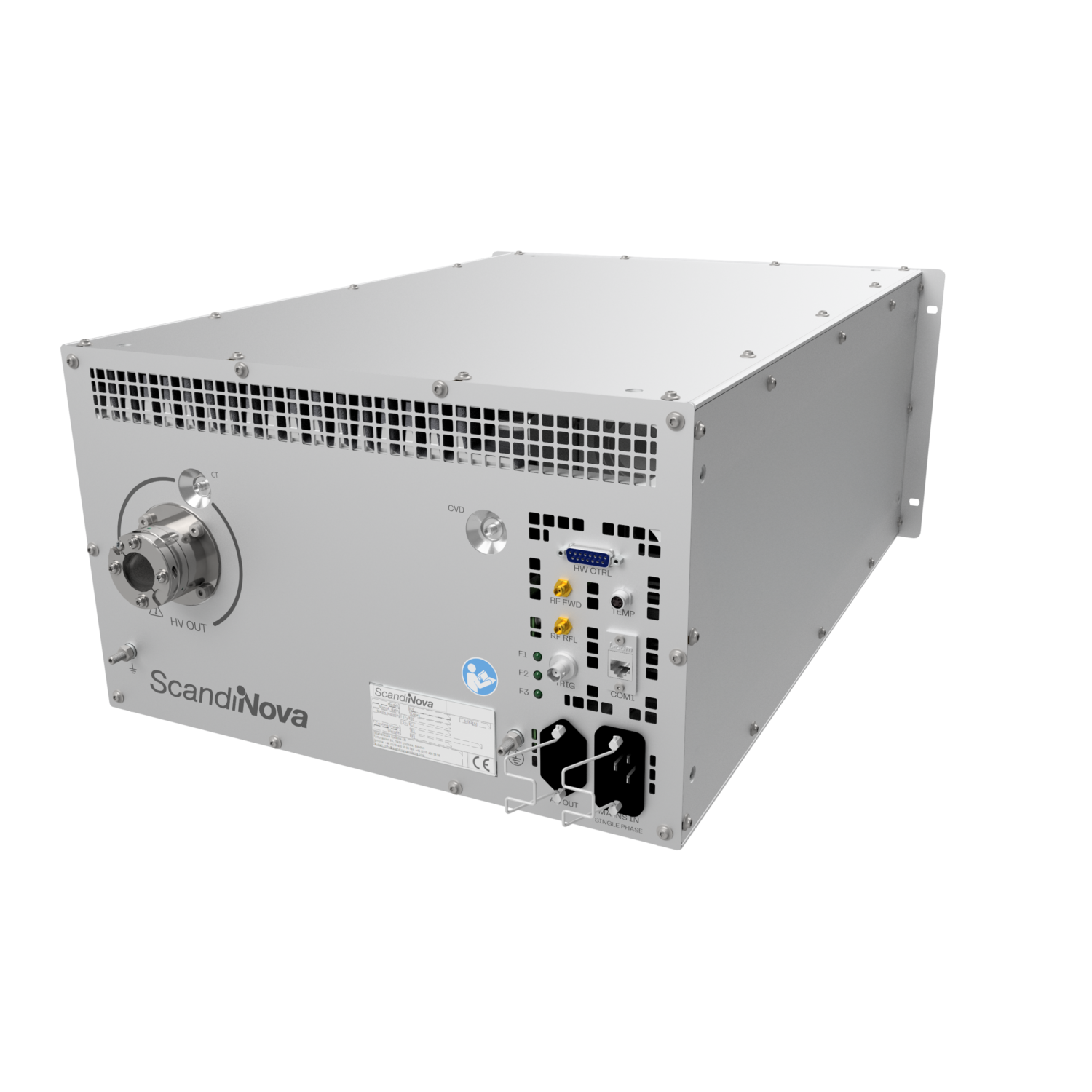

Magnetron Modulator. Designed to handle magnetrons in the 0.2 MW to 2 MW range. The system design is also simplified, as it requires only air cooling.

RF peak power: 0.2 – 2 MW
Pulse voltage: 16 – 38 kV
Pulse current: 20 – 100 A
Modulator peak: 3.8 MW
Modulator avg.: 1.5 kW

Datasheet M060
Drawing
3D Model (step)
ScandiNova M-Series

M060 Size and Weight.

Weight approx. 74 kg

Pulse control leads to new possibilities.

All ScandiNova pulse modulators and pulse generators are equipped with a user-friendly and modern control system for calibration, diagnostics and adjustments. The system offers a wide range of different shape modifications. Amplitude, pulse width and frequency can easily be changed and visualized on the user friendly GUI. The system also provides an overview of status for key functionality/components, Trig, Interlocks and Real-time event log. With EtherCAT remote control (option) it is also possible to set different voltage levels for each individual pulse.

The control system for the Magnetron modulators (M-series) is operated by a PC interface.

The M060 is our most compact modulator, designed for customers who need to drive low-power magnetrons in volume-restricted environments. It handles magnetrons in the 0.2 MW to 2 MW range and simplifies system design, as it requires only air cooling. This modulator delivers outstanding performance, easy integration, and the smallest available footprint—meeting even the most demanding packaging requirements of system integrators

The ScandiNova M060 modulator is an excellent choice for meeting your most critical requirements.

Key features.

  • Reliable modular design provides an exceptionally high level of operator and technician safety, thanks to low primary voltage levels. These low voltages also eliminate most component failures by reducing thermal and electrical stress.
  • Lower cost of ownership through high electrical efficiency, the elimination of expensive consumables requiring regular maintenance, and fewer unscheduled stops. The high efficiency also reduces cooling costs to roughly half that of a line-type pulse forming network modulator.
  • Precise pulse control allows users to optimize performance from their transmitter systems by adjusting pulse shape and amplitude. Both peak and average power delivery can be modified over time to meet evolving system requirements.
  • Comprehensive digital interfaces support system parameter adjustments and enable operating data to be communicated to the customer, simplifying system setup, performance monitoring, and data archiving.

Typical Magnetron Loads

STELLANT (L3)

PM2000X
L6170
L4553

MPP (CPI)

VMC2033A
VMC3139
VMC3162
VMC3014
VMC1891A
SFD373
SFD341

TELEDYNE E2V

MG5125

NISSHINBO (NJRC)

MX7637
MX7638
MX7639
M1913S
M1613
