M-SERIES

Magnetron Modulators.

Primarily used in radiation therapy and a variety of industrial applications, including radar, cargo scanning, and nondestructive testing. Uptime and compactness are key attributes of the M-Series.

Key Features:

Up to 5 MW of RF peak power
No consumables
Single or dual energy

Our magnetron pulse modulators require roughly one-third of the space compared to alternative solutions, while offering approximately 30% higher efficiency – two operational advantages that are particularly appealing to providers of cancer treatment systems. High reliability, minimal consumables, and leading performance also make them attractive for many industrial applications.

Learn more about ScandiNova M-Series , explore our different product models, or contact us with any questions.

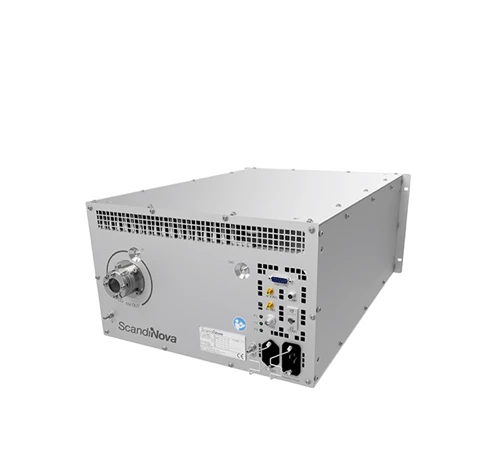

M060

RF peak power: 0.2 – 2 MW
Pulse voltage: 16 – 38 kV
Pulse current: 20 – 100 A
Modulator peak: 3,8 MW
Modulator avg.: 1,5 kW

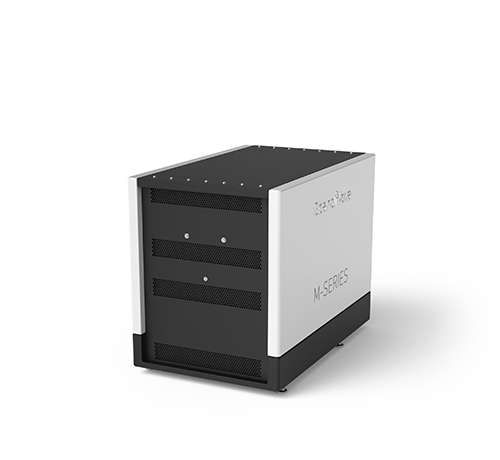

M100 / M100D

RF peak power: 1 – 3.1 MW
Pulse voltage: 30 – 52 kV
Pulse current: 30 – 120 A
Modulator peak: 6.2 MW
Modulator avg.: 8 kW

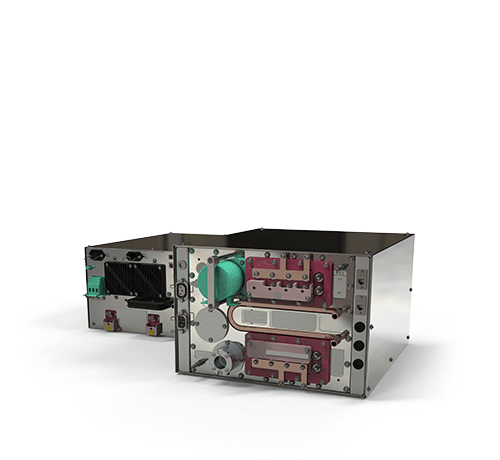

M100-i / M100D-i

RF peak power: 1 – 3.1 MW
Pulse voltage: 30 – 52 kV
Pulse current: 30 – 120 A
Modulator peak: 6.2 MW
Modulator avg.: 8 kW

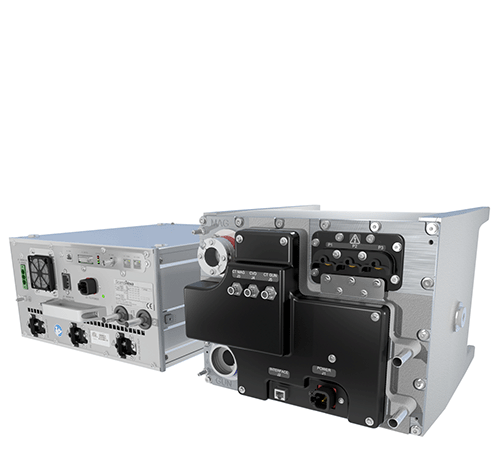

M110

RF peak power: 1 – 3.1 MW
Pulse voltage: 30 – 52 kV
Pulse current: 30 – 120 A
Modulator peak: 6.2 MW
Modulator avg.: 8 kW

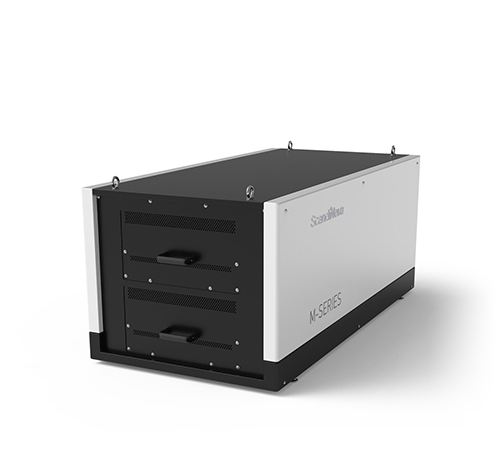

M200 / M200D

RF peak power: 2.5 – 5 MW
Pulse voltage: 40 – 75 kV
Pulse current: 30 – 250 A
Modulator peak: 14 MW
Modulator avg.: 16 kW

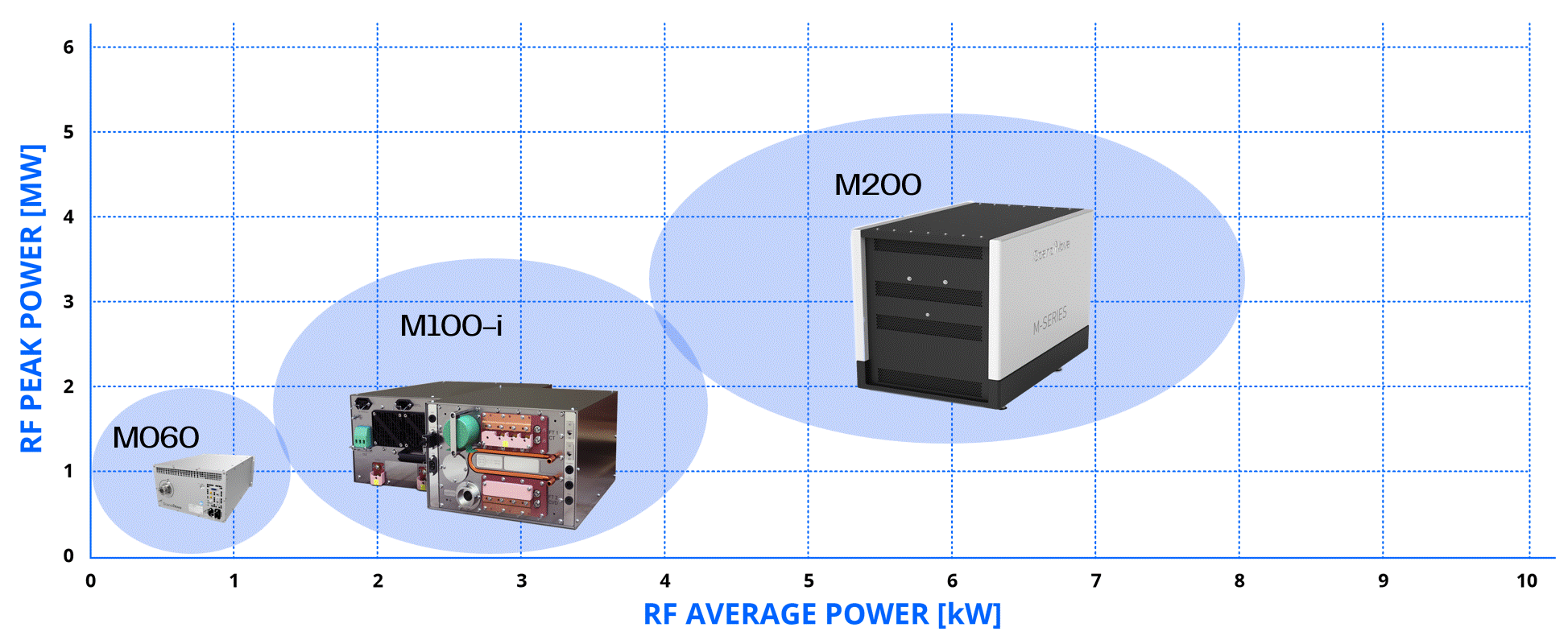

M-Series Overview

Thanks to our modular design, we can offer magnetron modulators that handle a wide range of loads and requirements, reaching RF peak power levels of up to 5 MW. Each model provides a flexible range of peak and average power to meet your specifications, and is compatible with most magnetron models on the market.

Discover more about each model above!

ScandiNova M-Series
